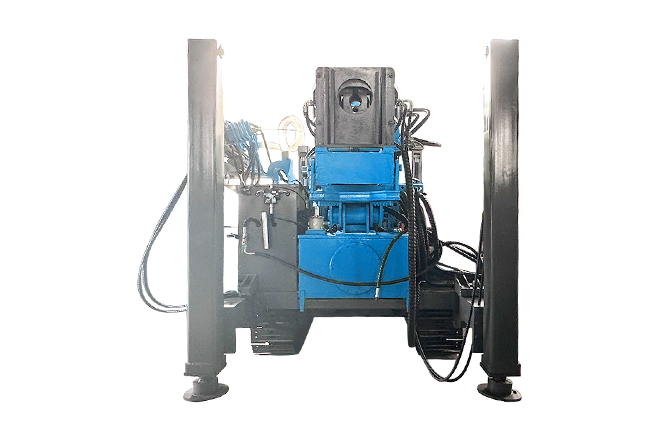

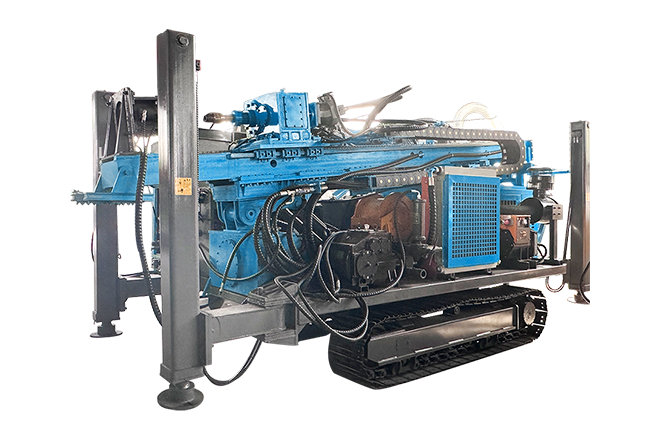

JY-1600 Fully Hydraulic Core Drilling Rig

The DMiningwell 1600 Fully Hydraulic Core Drilling Rig adopts full hydraulic drive. The power head rotation adopts axial piston pump and inclined shaft piston motor drive. The mechanical two gears plus stepless speed regulation have advanced structure. The power head adopts cylinder chain double speed feeding mechanism, which has stable and reliable movement. It has a lateral translation mechanism of the power head. The mast adopts cylinder take-off and landing to slide as a whole. It can drill holes in the range of 45-90 ° for construction. The hydraulic system adopts load sensitive control, which has high working efficiency and large torque. The drilling rig is equipped with hydraulic Trojan horse holder, hydraulic leveling legs, retractable mast and other devices, which is convenient for the rapid positioning of the drilling rig. It is equipped with wireless remote control track, which is suitable for a variety of terrains. It controls the crawling of the drilling rig within a safe distance to prevent sudden danger.
Main features of the drilling rig:
1. The drilling rig is fully hydraulic driven, with a floating spindle and a 3-meter drill pipe.
2. The drilling rig can perform mechanical two-gear plus stepless speed regulation, with a maximum torque of 3500N.m.
3. Driven by axial piston pump and inclined shaft piston motor.
4. With a lateral translation mechanism of the power head, the mast can be slid as a whole by taking off and landing with an oil cylinder, and can be drilled within a range of 45-90 °.
